Snap Fan Solar Exhaust System

$1,075.25 - $1,323.00
Shipping calculated at checkout.
Size: 12" solar fan & panel, thermostat kit, 14" passive shutter
$1,075.25
$1,075.25
Availability: In stock
SKU: C3056-12
Tags:
Collections:

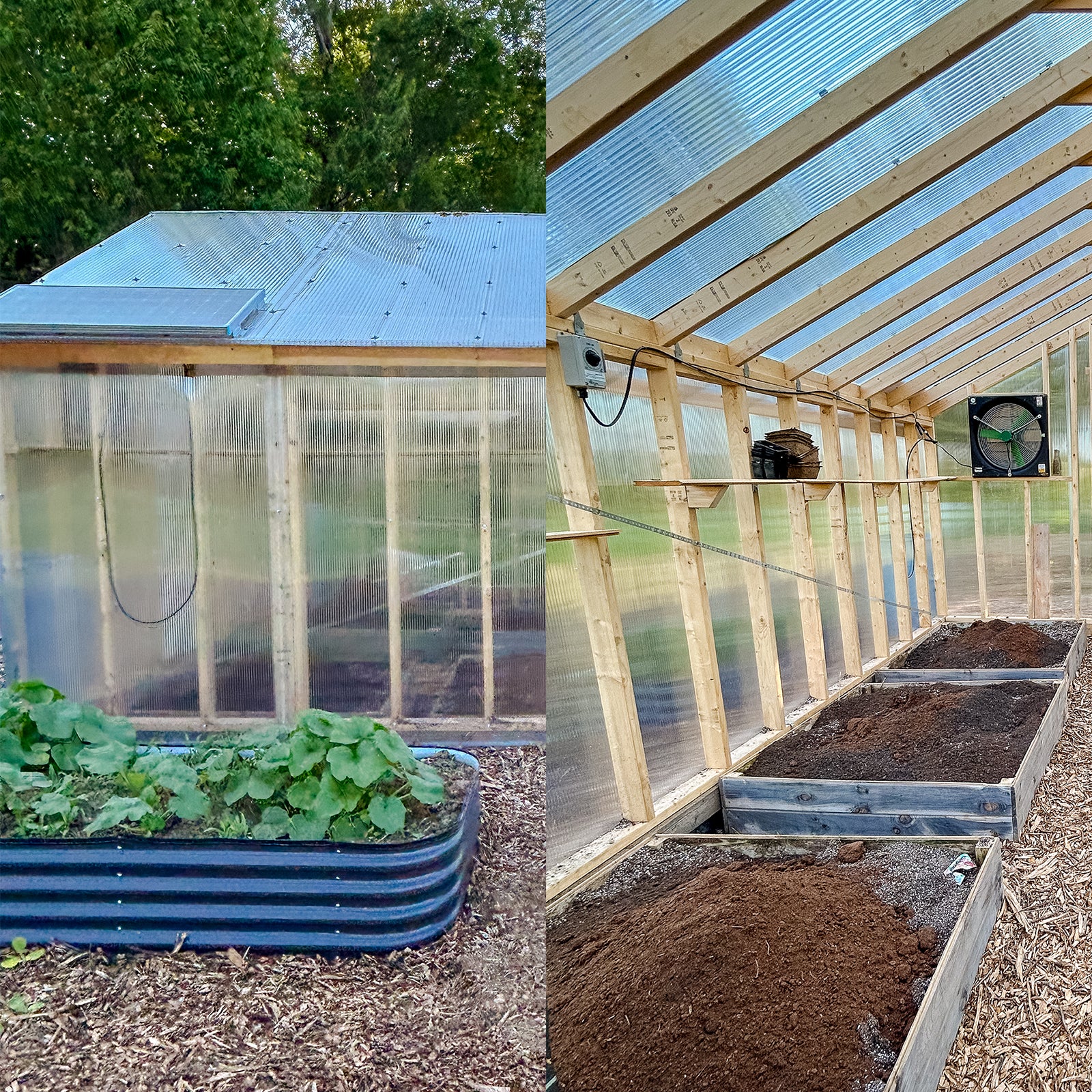

Solar Exhaust Fan System - Image of the product and the suggested installation
$1,075.25
$1,075.25

Cool your greenhouse, no electrician required.

If you’re building a DIY greenhouse and want a ventilation system that works without tying into household power, the Snap Fan Solar Exhaust System is your go-to solution. This all-in-one solar-powered exhaust fan kit is designed to pull heat out of your greenhouse as the sun shines, keeping your space cooler when your plants need it most.

Each kit includes a high-efficiency Snap Fan with matching solar panel, a thermostat and wiring harness kit to automate airflow based on temperature, and a passive aluminum shutter to protect the fan opening when not in use. Whether you’re working with a small starter greenhouse or a full-sized backyard setup, we offer three fan sizes to suit your space.

Fan Size CFM Panel Wattage Greenhouse Size Range
12" 810 50W 6' x 8' to 8' x 12'
16" 1310 50W 8' x 16' to 10' x 16'
20" 2200 100W 12' x 16' to 14' x 20'

This is the same system featured in Epic Gardening’s DIY Greenhouse Build, where it helped power off-grid greenhouse ventilation. Jacques and the team paired the 20" Snap Fan kit with our Heavy-Duty Aluminum Shutters and Solar Shutter Control Kit with Liberty Auto Opener to create a fully automated, electricity-free airflow system.

Watch the Snap Fan system in action in Epic Gardening’s video below!



  • No grid hookup required: Powered entirely by the sun
  • DIY-friendly: Easy to install with clear instructions
  • Smart cooling: Included thermostat gives you control over when the fan kicks on
  • Efficient airflow: Three fan sizes to match greenhouse size
  • All-in-one kit: Includes fan, panel, thermostat, wiring harness, and shutter

Complete solar-powered exhaust system for greenhouses includes:

  • Includes Snap Fan (12", 16", or 20") matched with a solar panel (50W for 12"/16", 100W for 20")
  • Includes DC Thermostat and Wiring Harness Kit (10 amp, 4°F differential, 10 ft cable with MC connectors)
  • Includes passive aluminum exhaust fan shutter sized to fan (14", 18", or 22")

Additional Details:

  • Ideal for DIY and off-grid greenhouse ventilation for greenhouse growers who don’t want to run electricity to their greenhouse
  • Passive shutter opens when fan runs and closes when off
  • Compatible with additional shutters for intake airflow; pair with our Heavy-Duty Aluminum Shutters and the Liberty Auto Opener Kit (sold separately) for a complete solar-powered system
  • Some assembly required
  • Be sure to review the installation guide PDF for mounting details and tips

Kit Dimensions & Weights

Solar Fans:

  • 12" Fan: 20" x 10" x 20", 18 lbs
  • 16" Fan: 24" x 10" x 24", 20 lbs
  • 20" Fan: 28" x 10" x 28", 25 lbs

Solar Panels:

  • 50W Panel: 25" x 21" x 2", 9 lbs
  • 100W Panel: 43" x 22" x 3", 18 lbs

Exhaust Fan Shutter Sizing:

  • 12" Fan → 14" x 14" shutter
  • 16" Fan → 18" x 18" shutter
  • 20" Fan → 22" x 22" shutter
    (Rough opening should be ½" larger than shutter size)

Download the full Instructions & Installation Guide PDF
